Cisco – Tunnel Async Data

Tunnel Async Data

VER A 7/23/03

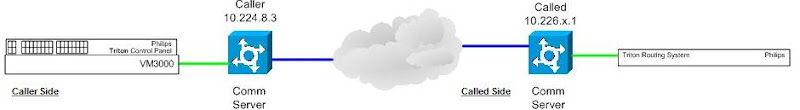

As an example, assume that async RS-232 devices are to be connected by leased line modems. Instead, the leased line modems are replaced with Cisco comm servers. Plug the RS-232 devices into async lines on the Cisco comm servers and connect the comm servers via an arbitrary topology IP network.  In this sample configuration, one side is the caller and the other side is the called. It is presumed that the caller side is more persistent in its desire to send data.
Assumptions:
The caller side has an IP address of 10.224.8.3 and is using Line 2.
The called side has an IP address of 10.226.x.1 and is using Line 3.

Caller Side

ip host ORDQW 20xx 10.226.x.1         ! ORDQW is just an example, please use city name.

busy-message ORDQW                       ! ORDQW is just an example, please use city name.

service tcp-keepalives-out

line x                                                       ! Whatever Async port you are using.

no motd-banner

no exec-banner

no vacant-message

autocommand telnet ORDQW /stream                ! This is have to match the ip host name.

autohangup

no flush-at-activation

no activation-character

escape-character NONE

exec

special-character-bits 8

exec-timeout 0 0

session-timeout 0 o

no modem inout

no autobaud

speed 19200                                          ! What ever the port speed needs to be.

stopbits 1

flowcontrol NONE

transport input NONE

Called Side

aaa authentication login ORDQW none                             ! ORDQW is just an example, please use city name.

no banner incoming

service tcp-keepalives-in

line x                                                                       ! Whatever Async port you are using.

no exec

no exec-banner

no vacant-message

login authentication ORDQW                                              ! Have to be the same as the login name above

modem DTR-active

no autobaud

speed x                                                                  ! What ever the port speed needs to be.

stopbits 1

flowcontrol NONE

transport input telnet
